Product Category

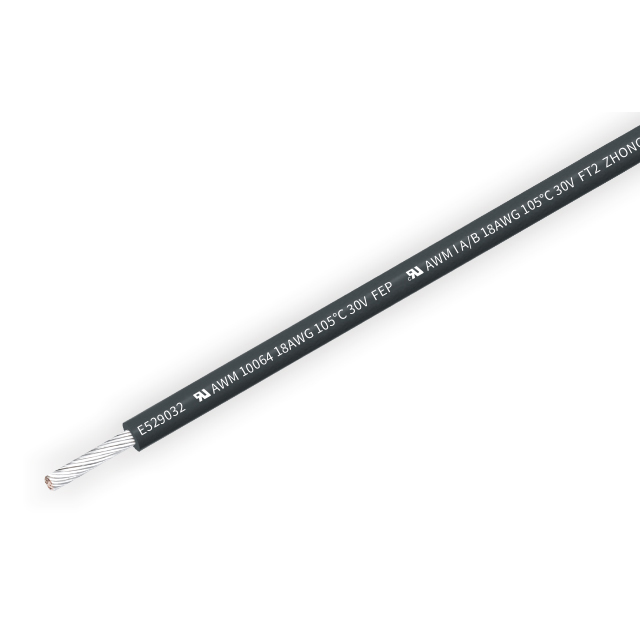

UL 10064

Fluoroplastic wire

Specifications

Nominal voltage: 30V

Temperature range: 105°C

Standard: UL758

Product Description

Applications

For further processing as insulated singles in internal or external interconnection cables for use in Class 2 circuits of electronic equipment.

Colours: All colours

Product dimensions

Conductor			Insulation	Diameter (mm)	Max.cond Resistance (Ω/KM)	Unit Length (M/FT)
Size (AWG)	Construction (No./mm)	Diameter (mm)	Nominal Thickness (mm)	Diameter (mm)	Max.cond Resistance (Ω/KM)	Unit Length (M/FT)
30	7/0.10	0.30	0.20	0.70	347	610/2000
30	1/0.26	0.26	0.20	0.66	347	610/2000
28	7/0.12	0.38	0.25	0.88	218	610/2000
28	1/0.32	0.32	0.25	0.82	218	610/2000
26	7/0.16	0.48	0.30	1.08	138	610/2000
26	19/0.10	0.48	0.30	1.08	138	610/2000
24	19/0.12	0.60	0.30	1.20	85.9	610/2000
	7/0.20	0.60	0.30	1.20	85.9	610/2000
	1/0.50	0.50	0.30	1.10	85.9	610/2000
22	19/0.15	0.75	0.30	1.35	54.3	610/2000
	7/0.254	0.75	0.30	1.35	54.3	610/2000
	1/0.65	0.65	0.30	1.25	54.3	610/2000
20	19/0.19	0.92	0.30	1.52	33.9	305/1000
	7/0.31	0.92	0.30	1.52	33.9	305/1000
	1/0.81	0.81	0.30	1.41	33.9	305/1000
18	19/0.235	1.17	0.30	1.77	21.4	305/1000
	7/0.39	1.17	0.30	1.77	21.4	305/1000
	1/1.02	1.02	0.30	1.62	21.4	305/1000
16	19/0.30	1.50	0.30	2.10	13.5	305/1000
	7/0.49	1.50	0.30	2.10	13.5	305/1000
	1/1.30	1.30	0.30	1.90	13.5	305/1000
14	19/0.37	1.85	0.35	2.55	8.45	305/1000
12	19/0.47	2.35	0.35	3.05	5.31	305/1000
10	19/0.61	3.00	0.35	3.70	3.55	305/1000

FAQ

FAQs

Q: How to choose the right wire for high-temperature environments?

A: For high-temperature environments, it is recommended to use fluoroplastic wires (e.g., UL1330, 200℃) or silicone rubber wires (e.g., UL3251, 250℃).
Q: Which wires are suitable for automotive or new energy vehicle internal wiring?

A: Wires for automotive electrical systems (e.g., QB-B, FLRY-A) and wires for electric vehicles (e.g., EV XLPE WIRE) are specifically designed for internal vehicle wiring.
Q: Which wire should be used for electronic equipment requiring anti-interference?

A: PVC sheathed wires with Al-Mylar shielding (e.g., UL2464, UL2517) can effectively resist external electromagnetic interference.
Q: Which wires have excellent oil and climate resistance?

A: Cross-linked PE wires (XLPE) and fluoroplastic wires (FEP) typically possess excellent oil and climate resistance due to their material properties.
Q: How to distinguish PVC electronic wires with different temperature ratings?

A: You can distinguish them by their UL style numbers, for example, UL1571 is rated for 80℃, while UL1015 is rated for 105℃.
