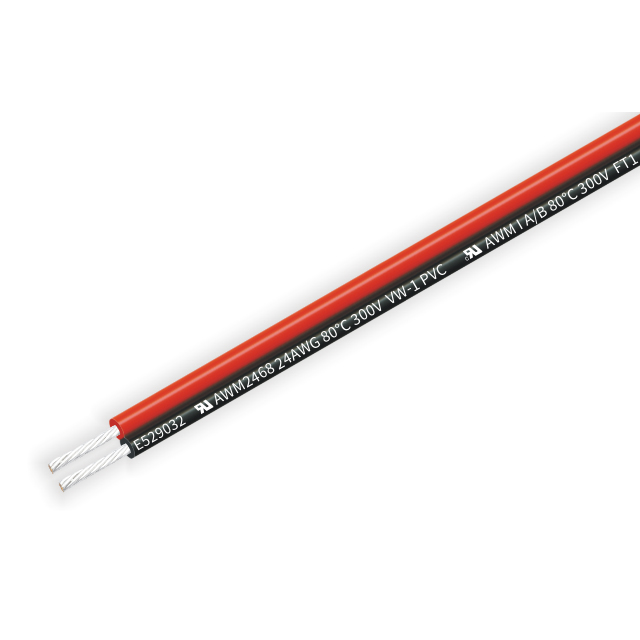

UL 2468

PVC Wire
Specifications
Nominal voltage: 300V
Temperature range: 80℃
Standard: UL758
Availability:
Quantity:
Inquiry

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Product Description

Applications

Internal wiring of electronic equipment.

Colours: All colours
Product dimensions

Conductor

Insulation

Diameter

(mm)

Max.cond

Resistance

(2/KM)

Unit Length

(M/FT)

Size

(AWG)

Construction

(No./mm)

Diameter

(mm)

Nominal Thickness

(mm)

32

7/0.080

0.24

0.38

1.00*2.00

542

610/2000

30

7/0.100

0.30

0.38

1.06*2.12

381

610/2000

28

7/0.127

0.38

0.38

1.14*2.28

239

610/2000

26

7/0.160

0.48

0.38

1.24*2.48

150

610/2000

24

11/0.160

0.61

0.38

1.37*2.74

94.2

610/2000

22

17/0.160

0.76

0.38

1.52*3.04

59.4

610/2000

20

21/0.180

0.95

0.38

1.71*3.42

36.7

610/2000

18

34/0.180

1.21

0.38

1.97*3.94

23.2

610/2000

16

26/0.254

1.50

0.38

2.26*4.52

14.6

305/1000

FAQ

FAQs
  • Q: How to choose the right wire for high-temperature environments?
    加 Created with Sketch.
    形状 Created with Sketch.
    A: For high-temperature environments, it is recommended to use fluoroplastic wires (e.g., UL1330, 200℃) or silicone rubber wires (e.g., UL3251, 250℃).
  • Q: Which wires are suitable for automotive or new energy vehicle internal wiring?
    加 Created with Sketch.
    形状 Created with Sketch.
    A: Wires for automotive electrical systems (e.g., QB-B, FLRY-A) and wires for electric vehicles (e.g., EV XLPE WIRE) are specifically designed for internal vehicle wiring.
  • Q: Which wire should be used for electronic equipment requiring anti-interference?
    加 Created with Sketch.
    形状 Created with Sketch.
    A: PVC sheathed wires with Al-Mylar shielding (e.g., UL2464, UL2517) can effectively resist external electromagnetic interference.
  • Q: Which wires have excellent oil and climate resistance?
    加 Created with Sketch.
    形状 Created with Sketch.
    A: Cross-linked PE wires (XLPE) and fluoroplastic wires (FEP) typically possess excellent oil and climate resistance due to their material properties.
  • Q: How to distinguish PVC electronic wires with different temperature ratings?
    加 Created with Sketch.
    形状 Created with Sketch.
    A: You can distinguish them by their UL style numbers, for example, UL1571 is rated for 80℃, while UL1015 is rated for 105℃.
Previous:
Next:

RELATED PRODUCTS

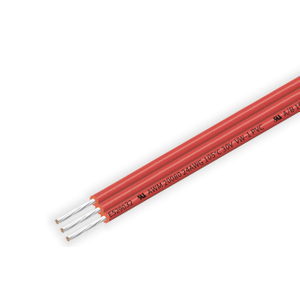

UL 20080
UL 20080

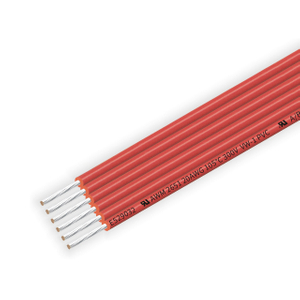

UL 2651
