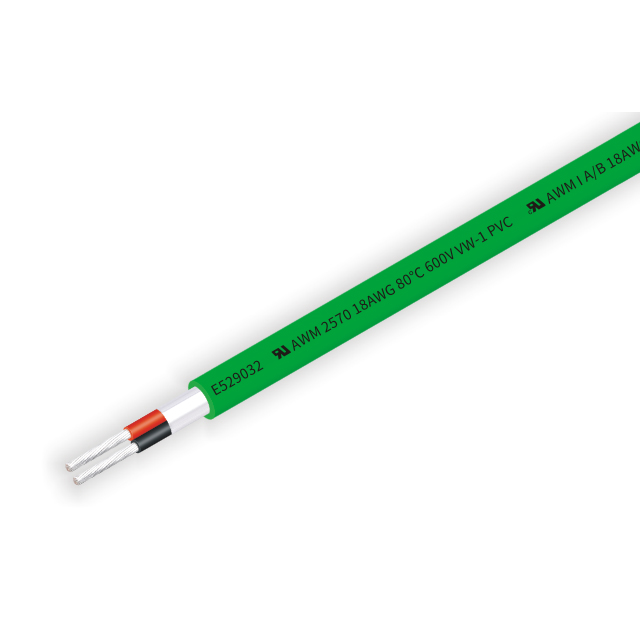

Product Description
Internal wiring or external interconnection of electronic equipment.
Conductor | NO.of Core | Insulation | Shield Coverage % | Jacket | Max.cond Resistance (2/KM) | Unit Length (M/FT) | ||||
Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | Outer Garment Thickness (mm) | Diameter (mm) | ||||
28 | 7/0.127 | 0.38 | 2 | 0.38 | 1.20 | ≥65 | 0.76 | 4.50 | 218 | 610/2000 |
3 | 0.38 | 1.20 | ≥65 | 0.76 | 4.80 | 218 | ||||
4 | 0.38 | 1.20 | ≥65 | 0.76 | 5.00 | 218 | ||||
5 | 0.38 | 1.20 | ≥65 | 0.76 | 5.40 | 218 | ||||
26 | 7/0.16 | 0.48 | 2 | 0.38 | 1.30 | ≥65 | 0.76 | 4.80 | 138 | 610/2000 |
3 | 0.38 | 1.30 | ≥65 | 0.76 | 5.00 | 138 | ||||
4 | 0.38 | 1.30 | ≥65 | 0.76 | 5.30 | 138 | ||||
5 | 0.38 | 1.30 | ≥65 | 0.76 | 5.40 | 138 | ||||
24 | 11/0.16 | 0.61 | 2 | 0.38 | 1.40 | ≥65 | 0.76 | 5.00 | 85.9 | 305/1000 |
3 | 0.38 | 1.40 | ≥65 | 0.76 | 5.20 | 85.9 | ||||
4 | 0.38 | 1.40 | ≥65 | 0.76 | 5.60 | 85.9 | ||||
5 | 0.38 | 1.40 | ≥65 | 0.76 | 6.00 | 85.9 | ||||
22 | 17/0.16 | 0.77 | 2 | 0.38 | 1.60 | ≥65 | 0.76 | 5.40 | 54.3 | 305/1000 |
3 | 0.38 | 1.60 | ≥65 | 0.76 | 5.60 | 54.3 | ||||
4 | 0.38 | 1.60 | ≥65 | 0.76 | 6.00 | 54.3 | ||||
5 | 0.38 | 1.60 | ≥65 | 0.76 | 6.50 | 54.3 | ||||
20 | 21/0.18 | 0.92 | 2 | 0.38 | 1.80 | ≥65 | 0.76 | 5.80 | 33.9 | 305/1000 |
3 | 0.38 | 1.80 | ≥65 | 0.76 | 6.00 | 33.9 | ||||
4 | 0.38 | 1.80 | ≥65 | 0.76 | 6.50 | 33.9 | ||||
18 | 34/0.18 | 1.19 | 2 | 0.38 | 2.10 | ≥65 | 0.76 | 5.40 | 21.4 | 305/1000 |
3 | 0.38 | 2.10 | ≥65 | 0.76 | 6.20 | 21.4 | ||||
4 | 0.38 | 2.10 | ≥65 | 0.76 | 6.90 | 21.4 | ||||
16 | 26/0.254 | 1.49 | 2 | 0.38 | 2.40 | ≥65 | 0.76 | 5.90 | 13.5 | 305/1000 |
3 | 0.38 | 2.40 | ≥65 | 0.76 | 6.90 | 13.5 | ||||
4 | 0.38 | 2.40 | ≥65 | 0.76 | 7.70 | 13.5 | ||||
14 | 41/0.254 | 1.89 | 2 | 0.38 | 2.70 | ≥65 | 0.76 | 6.50 | 8.45 | 305/1000 |
3 | 0.38 | 2.70 | ≥65 | 0.76 | 7.50 | 8.45 | ||||
4 | 0.38 | 2.70 | ≥65 | 0.76 | 8.50 | 8.45 | ||||
