Product Category

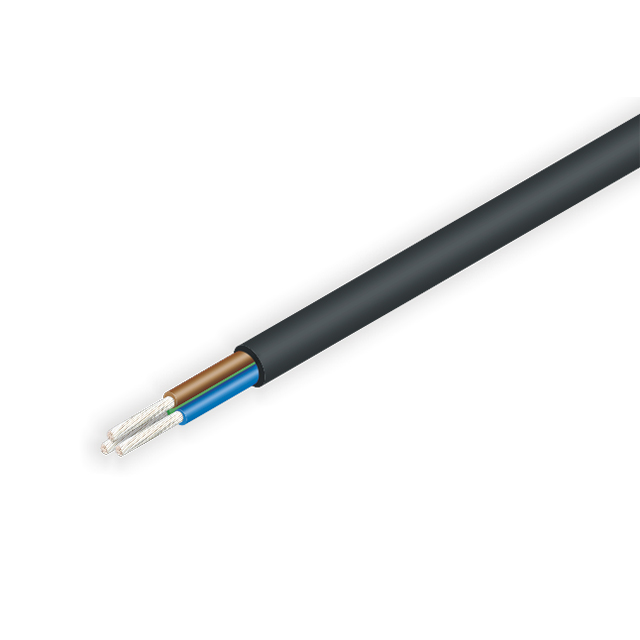

UL 2725

PVC sheathed wire

Specifications

Nominal voltage: 30V

Temperature range: 80°C

Standard: UL758

Product Description

Applications

Internal wiring of electronic equipment.

Colours: All colours

Product dimensions

Nominal Thickness (mm)	Conductor			NO. of Core	Completed outer Diameter (mm)	Shield	Drain wire (NO./mm)	Braid (NO./mm)	Outer Jacket
Nominal Thickness (mm)	Size (AWG)	Construction (No./mm)	Diameter (mm)	NO. of Core	Completed outer Diameter (mm)	Shield	Drain wire (NO./mm)	Braid (NO./mm)	Outer Garment Thickness (mm)	Completed outer Diameter (mm)
USB 1P+2C	28	7/0.127	0.38	1P	0.90	AL-mylar	7/0.127	16/5/0.10	0.55	4.20
USB 1P+2C	28	7/0.127	0.38	2C	0.90	AL-mylar	7/0.127	16/5/0.10	0.55	4.20
USB 1P+2C	28	7/0.127	0.38	1P	0.90	AL-mylar	7/0.127	16/5/0.10	0.65	4.80
USB 1P+2C	26	7/0.16	0.50	2C	1.00	AL-mylar	7/0.127	16/5/0.10	0.65	4.80
USB 1P+2C	28	7/0.127	0.38	1P	0.90	AL-mylar	7/0.127	16/5/0.10	0.65	4.90
USB 1P+2C	24	11/0.16	0.60	2C	1.10	AL-mylar	7/0.127	16/5/0.10	0.65	4.90
USB 1P+2C	28	7/0.127	0.38	1P	0.90	AL-mylar	7/0.127	16/5/0.10	0.81	5.10
USB 1P+2C	22	17/0.16	0.76	2C	1.30	AL-mylar	7/0.127	16/5/0.10	0.81	5.10
USB 1P+2C	28	7/0.127	0.38	1P	0.90	AL-mylar	7/0.127	16/5/0.10	0.81	5.20
USB 1P+2C	20	21/0.18	0.93	2C	1.50	AL-mylar	7/0.127	16/5/0.10	0.81	5.20

FAQ

FAQs

Q: How to choose the right wire for high-temperature environments?

A: For high-temperature environments, it is recommended to use fluoroplastic wires (e.g., UL1330, 200℃) or silicone rubber wires (e.g., UL3251, 250℃).
Q: Which wires are suitable for automotive or new energy vehicle internal wiring?

A: Wires for automotive electrical systems (e.g., QB-B, FLRY-A) and wires for electric vehicles (e.g., EV XLPE WIRE) are specifically designed for internal vehicle wiring.
Q: Which wire should be used for electronic equipment requiring anti-interference?

A: PVC sheathed wires with Al-Mylar shielding (e.g., UL2464, UL2517) can effectively resist external electromagnetic interference.
Q: Which wires have excellent oil and climate resistance?

A: Cross-linked PE wires (XLPE) and fluoroplastic wires (FEP) typically possess excellent oil and climate resistance due to their material properties.
Q: How to distinguish PVC electronic wires with different temperature ratings?

A: You can distinguish them by their UL style numbers, for example, UL1571 is rated for 80℃, while UL1015 is rated for 105℃.
