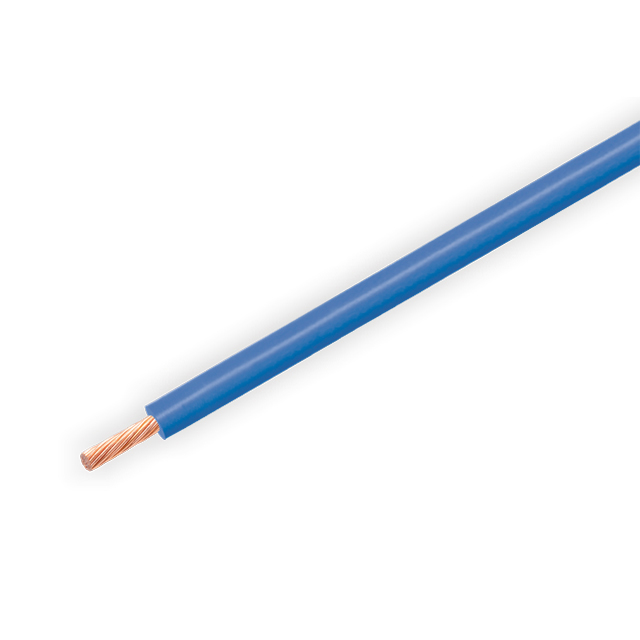

CCC Wire RV/RV-90

Specifications
Nominal voltage: 300/500~450/750
Temperature range: 70℃/90℃
Standard: GB/T5023.3-2008/IEC60227-3:1997
Availability:
Quantity:
Inquiry

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Product Description

Applications

Widely used for varieties of lighting, home appliance, electrothermal products, electrical equipment etc.

Colours: All colours
Product dimensions

Conductor

Insulation

Diameter

(mm)

Max.cond

Resistance

(2/KM)

Unit Length

(M/FT)

Cross Section

(mm²)

Construction

(No./mm)

Diameter

(mm)

Nominal Thickness

(mm)

(02)RV1.5mm²

30/0.254

1.60

0.70

3.00

13.3

200

(02)RV2.5mm²

50/0.254

2.10

0.80

3.70

7.98

200

(06)RV0.5mm²

20/0.18

0.90

0.60

2.10

39

200

(06)RV0.75mm²

24/0.20

1.20

0.60

2.40

26

200

(06)RV1.0mm²

32/0.20

1.30

0.60

2.50

19.5

200

(08)RV-90 0.50mm²

20/0.18

0.90

0.60

2.10

39

200

(08)RV-90 0.75mm²

24/0.20

1.20

0.60

2.40

26

200

(08)RV-90 1.0mm²

32/0.10

1.30

0.60

2.50

19.5

200

(08)RV-90 1.50mm²

30/0.254

1.60

0.70

3.00

13.3

200

(08)RV-90 2.50mm²

50/0.254

2.10

0.80

3.70

7.98

200

FAQ

  • Q: How to choose the right wire for high-temperature environments?
    加 Created with Sketch.
    形状 Created with Sketch.
    A: For high-temperature environments, it is recommended to use fluoroplastic wires (e.g., UL1330, 200℃) or silicone rubber wires (e.g., UL3251, 250℃).
  • Q: Which wires are suitable for automotive or new energy vehicle internal wiring?
    加 Created with Sketch.
    形状 Created with Sketch.
    A: Wires for automotive electrical systems (e.g., QB-B, FLRY-A) and wires for electric vehicles (e.g., EV XLPE WIRE) are specifically designed for internal vehicle wiring.
  • Q: Which wire should be used for electronic equipment requiring anti-interference?
    加 Created with Sketch.
    形状 Created with Sketch.
    A: PVC sheathed wires with Al-Mylar shielding (e.g., UL2464, UL2517) can effectively resist external electromagnetic interference.
  • Q: Which wires have excellent oil and climate resistance?
    加 Created with Sketch.
    形状 Created with Sketch.
    A: Cross-linked PE wires (XLPE) and fluoroplastic wires (FEP) typically possess excellent oil and climate resistance due to their material properties.
  • Q: How to distinguish PVC electronic wires with different temperature ratings?
    加 Created with Sketch.
    形状 Created with Sketch.
    A: You can distinguish them by their UL style numbers, for example, UL1571 is rated for 80℃, while UL1015 is rated for 105℃.
Previous:
Next:

RELATED PRODUCTS

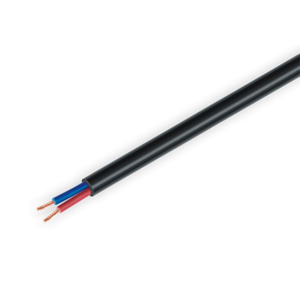

CCC Wire RVV
CCC Wire RVV
CCC Wire BV/BV-90
CCC Wire BV/BV-90

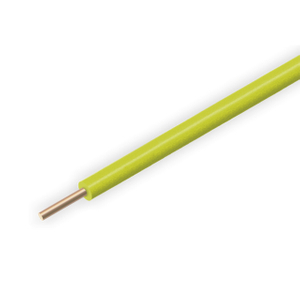

CCC Wire BVR
