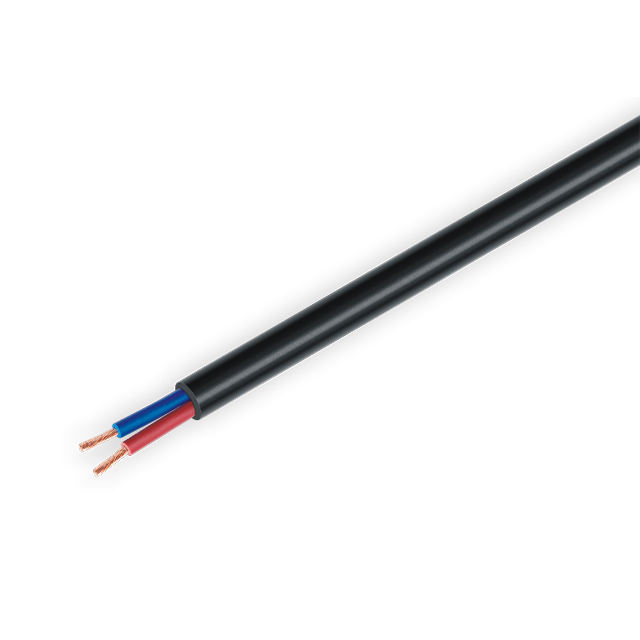

CCC Wire RVV

Specifications

Nominal voltage: 450/750V

Temperature range: 70°C/90°C

Standard: GB/T5023.3-2008/IEC60227-3:1997

Product Description

Applications

Widely used for varieties of lighting, home appliance, electrothermal products, electrical equipment etc.

Colours: All colours

Product dimensions

Conductor			Insulation	Completed outer Diameter (mm)	Insulation	Completed outer Diameter (mm)	Max.cond Resistance (Ω/KM)	Unit Length (M/FT)
Cross Section (mm²)	Construction (No./mm)	Diameter (mm)	Nominal Thickness (mm)	Completed outer Diameter (mm)	Nominal Thickness (mm)	Completed outer Diameter (mm)	Max.cond Resistance (Ω/KM)	Unit Length (M/FT)
52RVV 2*0.5mm²	20/0.18	0.95	0.50	2.00	0.60	3.3*5.3	40.1	100
52RVV 2*0.75mm²	30/0.18	1.17	0.50	2.25	0.60	3.5*5.7	25.7	100
52RVV 3*0.5mm²	20/0.18	0.95	0.50	2.00	0.60	5.50	40.1	100
52RVV 3*0.75mm²	30/0.18	1.17	0.60	2.25	0.80	6.00	25.7	100
53RVV 2*0.75mm²	24/0.20	1.17	0.60	2.25	0.80	3.5*6.0	25.7	100
53RVV 2*1.0mm²	32/0.20	1.34	0.60	2.50	0.80	4.2*6.8	20.0	100
53RVV 2*0.75mm²	24/0.20	1.17	0.60	2.25	0.80	6.30	25.7	100
53RVV 3*0.75mm²	24/0.20	1.17	0.60	2.25	0.80	6.80	25.7	100
53RVV 2*1.0mm²	32/0.20	1.34	0.60	2.50	0.80	6.70	20.0	100
53RVV 3*1.0mm²	32/0.20	1.34	0.60	2.50	0.80	7.00	20.0	100
53RVV 4*1.0mm²	32/0.20	1.34	0.60	2.50	0.80	8.00	20.0	100
53RVV 3*1.5mm²	30/0.254	1.65	0.60	3.00	0.80	8.30	10.6	100

FAQ

Q: How to choose the right wire for high-temperature environments?

A: For high-temperature environments, it is recommended to use fluoroplastic wires (e.g., UL1330, 200℃) or silicone rubber wires (e.g., UL3251, 250℃).
Q: Which wires are suitable for automotive or new energy vehicle internal wiring?

A: Wires for automotive electrical systems (e.g., QB-B, FLRY-A) and wires for electric vehicles (e.g., EV XLPE WIRE) are specifically designed for internal vehicle wiring.
Q: Which wire should be used for electronic equipment requiring anti-interference?

A: PVC sheathed wires with Al-Mylar shielding (e.g., UL2464, UL2517) can effectively resist external electromagnetic interference.
Q: Which wires have excellent oil and climate resistance?

A: Cross-linked PE wires (XLPE) and fluoroplastic wires (FEP) typically possess excellent oil and climate resistance due to their material properties.
Q: How to distinguish PVC electronic wires with different temperature ratings?

A: You can distinguish them by their UL style numbers, for example, UL1571 is rated for 80℃, while UL1015 is rated for 105℃.
