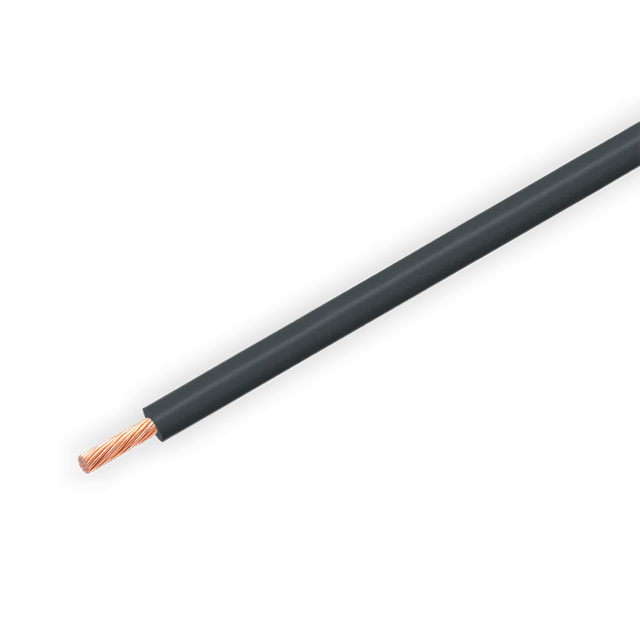

AVSS

Specifications

Nominal voltage: 50V

Temperature range: -40°C~90°C

Standard: JASO D611-1994

Product Description

Applications

Automotive internal connection wire, with high flexibility, excellent heat resistance, oil resistance and mechanical properties.

Colours: All colours

Product dimensions

Conductor			Insulation	Diameter (mm)	Max.cond Resistance (Ω/KM)	Unit Length (M/FT)
Size (AWG)	Construction (No./mm)	Diameter (mm)	Nominal Thickness (mm)	Diameter (mm)	Max.cond Resistance (Ω/KM)	Unit Length (M/FT)
0.35	7/0.254	0.78	0.30	1.38	50.2	500
0.50	7/0.32	0.96	0.30	1.56	32.7	500
0.85	19/0.24	1.21	0.30	1.81	21.7	500
1.25	19/0.29	1.46	0.30	2.06	14.9	500
1.5	30/0.254	1.65	0.30	2.25	14.9	500
2.0	19/0.37	1.86	0.40	2.66	9	500
2.5	50/0.25	2.10	0.40	2.90	9	500
4.0	56/0.30	2.7	0.40	3.50	9	500
6.0	84/0.30	3.3	0.50	4.30	9	500
0.3f	19/0.16	0.83	0.30	1.43	48.8	500
0.5f	19/0.19	0.98	0.30	1.58	34.6	500
0.85f	7/0.40	1.0	0.30	1.80	20.8	500
0.75f	19/0.23	1.2	0.30	1.80	23.6	500
1.25f	37/0.21	1.52	0.30	2.12	14.6	500
2f	37/0.26	1.88	0.40	2.68	9.5	500

FAQ

Q: How to choose the right wire for high-temperature environments?

A: For high-temperature environments, it is recommended to use fluoroplastic wires (e.g., UL1330, 200℃) or silicone rubber wires (e.g., UL3251, 250℃).
Q: Which wires are suitable for automotive or new energy vehicle internal wiring?

A: Wires for automotive electrical systems (e.g., QB-B, FLRY-A) and wires for electric vehicles (e.g., EV XLPE WIRE) are specifically designed for internal vehicle wiring.
Q: Which wire should be used for electronic equipment requiring anti-interference?

A: PVC sheathed wires with Al-Mylar shielding (e.g., UL2464, UL2517) can effectively resist external electromagnetic interference.
Q: Which wires have excellent oil and climate resistance?

A: Cross-linked PE wires (XLPE) and fluoroplastic wires (FEP) typically possess excellent oil and climate resistance due to their material properties.
Q: How to distinguish PVC electronic wires with different temperature ratings?

A: You can distinguish them by their UL style numbers, for example, UL1571 is rated for 80℃, while UL1015 is rated for 105℃.
