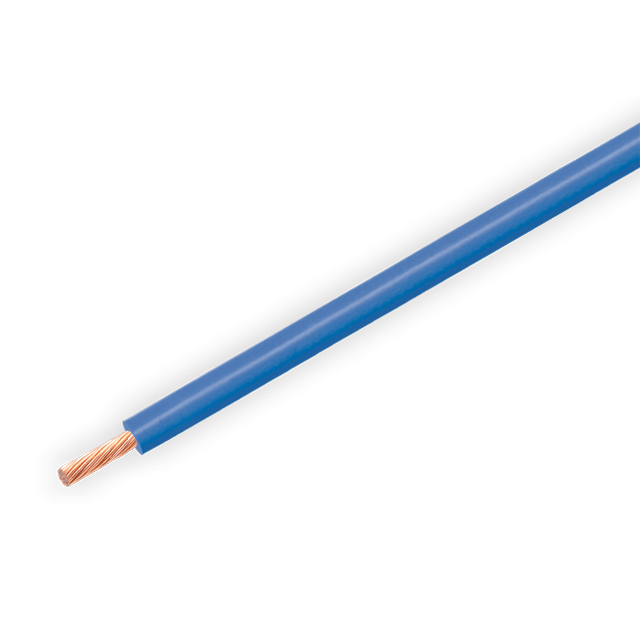

FLRY-B

Specifications

Nominal voltage: 60V

Temperature range: -40°C~100°C

Standard: DIN

Product Description

Applications

Wires for automotive electrical systems.

Colours: All colours

Product dimensions

Conductor			Insulation	Diameter (mm)	Max.cond Resistance (Ω/KM)	Unit Length (M/FT)
Size (AWG)	Construction (No./mm)	Diameter (mm)	Nominal Thickness (mm)	Diameter (mm)	Max.cond Resistance (Ω/KM)	Unit Length (M/FT)
0.35	12/0.21	0.78	0.20	1.22	54.4	1000
0.50	16/0.20	0.95	0.22	1.43	37.1	1000
0.75	24/0.21	1.16	0.24	1.69	24.7	1000
1.0	32/0.21	1.25	0.24	1.78	18.5	500
1.5	30/0.26	1.62	0.24	2.16	12.7	500
2.0	28/0.31	1.62	0.28	2.25	9.42	500
2.5	50/0.25	2.05	0.28	2.69	7.6	500
3.0	44/0.31	2.05	0.32	2.77	6.15	500
4.0	56/0.31	2.76	0.32	3.50	4.24	200
5.0	65/0.31	2.97	0.32	3.72	3.6	200
6.0	84/0.31	3.32	0.32	4.08	2.67	200
8.0	106/0.31	3.80	0.32	4.57	2.11	200
10.0	132/0.31	4.25	0.32	5.04	1.78	100
16.0	212/0.31	5.38	0.32	6.20	1.06	100

FAQ

Q: How to choose the right wire for high-temperature environments?

A: For high-temperature environments, it is recommended to use fluoroplastic wires (e.g., UL1330, 200℃) or silicone rubber wires (e.g., UL3251, 250℃).
Q: Which wires are suitable for automotive or new energy vehicle internal wiring?

A: Wires for automotive electrical systems (e.g., QB-B, FLRY-A) and wires for electric vehicles (e.g., EV XLPE WIRE) are specifically designed for internal vehicle wiring.
Q: Which wire should be used for electronic equipment requiring anti-interference?

A: PVC sheathed wires with Al-Mylar shielding (e.g., UL2464, UL2517) can effectively resist external electromagnetic interference.
Q: Which wires have excellent oil and climate resistance?

A: Cross-linked PE wires (XLPE) and fluoroplastic wires (FEP) typically possess excellent oil and climate resistance due to their material properties.
Q: How to distinguish PVC electronic wires with different temperature ratings?

A: You can distinguish them by their UL style numbers, for example, UL1571 is rated for 80℃, while UL1015 is rated for 105℃.
