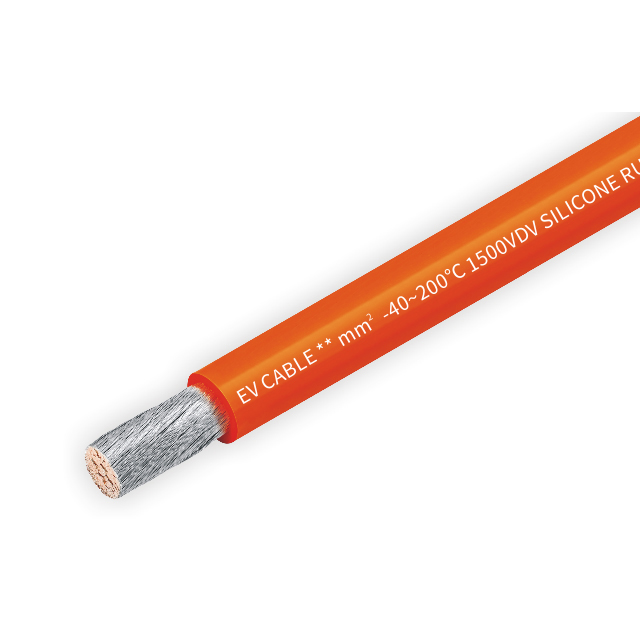

EV Silicone Rubber Wire

Specifications

Nominal voltage: 1500V DC
Temperature range: -40~200℃
Standard: ISO19642

Product Description

New energy vehicles and equipment, energy storage equipment, medical devices, photovoltaics, robots, drones, etc.

Conductor			Insulation	Diameter (mm)	Max.cond Resistance (2/KM)	Unit Length (M/FT)
Cross Section (mm²)	Construction (No./mm)	Diameter (mm)	Nominal Thickness (mm)	Diameter (mm)	Max.cond Resistance (2/KM)	Unit Length (M/FT)
10	2000/0.08	4.50	1.00	7.5+/-0.20	1.8	Rollable/axle type, as per customer's requirements
16	3200/0.08	6.00	1.00	9.0+/-0.30	1.15
25	5000/0.08	7.50	1.10	11.0+/-0.50	0.8
35	7000/0.08	8.80	1.10	12.3+/-0.50	0.6
50	10000/0.08	10.30	1.20	14.0+/-0.50	0.4
70.0	13934/0.08	12.00	1.20	15.5+/-0.50	0.3
95.0	18910/0.08	15.00	1.20	19.0+/-0.70	0.2
150.0	29860/0.08	19.00	1.40	23.0+/-0.80	0.13
240.0	47771/0.08	26.00	1.50	32.0+/-1.0	0.09

FAQ

Q: How to choose the right wire for high-temperature environments?

A: For high-temperature environments, it is recommended to use fluoroplastic wires (e.g., UL1330, 200℃) or silicone rubber wires (e.g., UL3251, 250℃).
Q: Which wires are suitable for automotive or new energy vehicle internal wiring?

A: Wires for automotive electrical systems (e.g., QB-B, FLRY-A) and wires for electric vehicles (e.g., EV XLPE WIRE) are specifically designed for internal vehicle wiring.
Q: Which wire should be used for electronic equipment requiring anti-interference?

A: PVC sheathed wires with Al-Mylar shielding (e.g., UL2464, UL2517) can effectively resist external electromagnetic interference.
Q: Which wires have excellent oil and climate resistance?

A: Cross-linked PE wires (XLPE) and fluoroplastic wires (FEP) typically possess excellent oil and climate resistance due to their material properties.
Q: How to distinguish PVC electronic wires with different temperature ratings?

A: You can distinguish them by their UL style numbers, for example, UL1571 is rated for 80℃, while UL1015 is rated for 105℃.
