Product Description

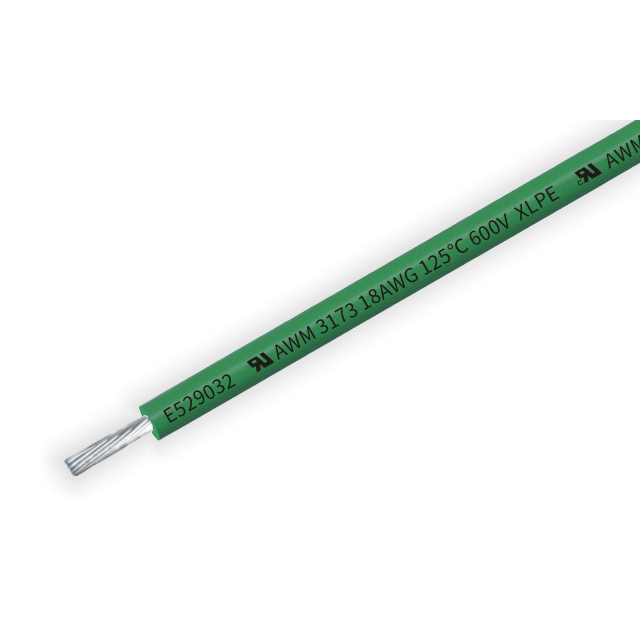

Internal wiring of appliances and electronic equipment.
Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | Max.cond Resistance (Ω/KM) | Unit Length (M/FT) |
26 | 7/0.16 | 0.48 | 0.78 | 2.04 | 138 | 610/2000 |
24 | 11/0.16 | 0.61 | 0.78 | 2.17 | 85.9 | 610/2000 |
22 | 17/0.16 | 0.77 | 0.78 | 2.33 | 54.3 | 610/2000 |
20 | 21/0.18 | 0.92 | 0.78 | 2.48 | 33.9 | 610/2000 |
18 | 34/0.18 | 1.19 | 0.78 | 2.75 | 21.4 | 305/1000 |
16 | 26/0.254 | 1.49 | 0.78 | 3.05 | 13.5 | 305/1000 |
14 | 41/0.254 | 1.89 | 0.78 | 3.45 | 8.45 | 305/1000 |
12 | 65/0.254 | 2.37 | 0.78 | 3.93 | 5.31 | 305/1000 |
10 | 105/0.254 | 3.02 | 0.78 | 4.58 | 3.343 | 305/1000 |
9 | 133/0.254 | 3.39 | 0.78 | 4.95 | 2.652 | 305/1000 |
