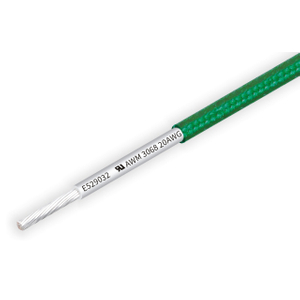

UL 3068

Silicone rubber wire
Specifications
Nominal voltage: 300V
Temperature range: 150℃
Standard: UL758
Availability:
Quantity:
Inquiry

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Product Description

Applications

Widely used in home appliance, lighting, heater, motor&generator, UAV, robot, industrial power etc.

Colours: All colours

Product dimensions

Conductor

Insulation

Diameter
(mm)

Max.cond
Resistance
(Ω/KM)

Unit Length
(M/FT)

Size
(AWG)

Construction
(No./mm)

Diameter
(mm)

Nominal Thickness
(mm)

30

7/0.10

0.30

0.60

1.50

150

610/2000

28

7/0.12

0.38

0.60

1.58

150

610/2000

26

7/0.16

0.48

0.60

1.68

150

610/2000

24

7/0.20

0.61

0.60

1.81

94.2

610/2000

22

7/0.254

0.77

0.60

1.97

59.4

610/2000

20

7/0.30

0.94

0.60

2.14

36.7

610/2000

18

7/0.39

1.19

0.60

2.39

23.2

305/1000

16

7/0.49

1.49

0.60

2.69

14.6

305/1000

FAQ

FAQs
  • Q: How to choose the right wire for high-temperature environments?
    加 Created with Sketch.
    形状 Created with Sketch.
    A: For high-temperature environments, it is recommended to use fluoroplastic wires (e.g., UL1330, 200℃) or silicone rubber wires (e.g., UL3251, 250℃).
  • Q: Which wires are suitable for automotive or new energy vehicle internal wiring?
    加 Created with Sketch.
    形状 Created with Sketch.
    A: Wires for automotive electrical systems (e.g., QB-B, FLRY-A) and wires for electric vehicles (e.g., EV XLPE WIRE) are specifically designed for internal vehicle wiring.
  • Q: Which wire should be used for electronic equipment requiring anti-interference?
    加 Created with Sketch.
    形状 Created with Sketch.
    A: PVC sheathed wires with Al-Mylar shielding (e.g., UL2464, UL2517) can effectively resist external electromagnetic interference.
  • Q: Which wires have excellent oil and climate resistance?
    加 Created with Sketch.
    形状 Created with Sketch.
    A: Cross-linked PE wires (XLPE) and fluoroplastic wires (FEP) typically possess excellent oil and climate resistance due to their material properties.
  • Q: How to distinguish PVC electronic wires with different temperature ratings?
    加 Created with Sketch.
    形状 Created with Sketch.
    A: You can distinguish them by their UL style numbers, for example, UL1571 is rated for 80℃, while UL1015 is rated for 105℃.
Previous:
Next:

RELATED PRODUCTS

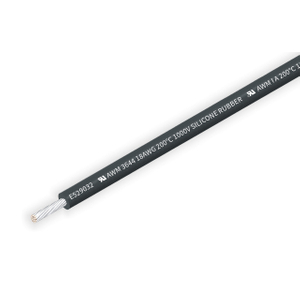

UL 4330
UL 4330
UL 3644
UL 3644

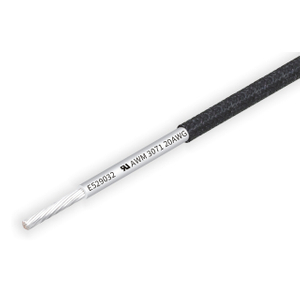

UL 3074
UL 3074
UL 3071
UL 3071

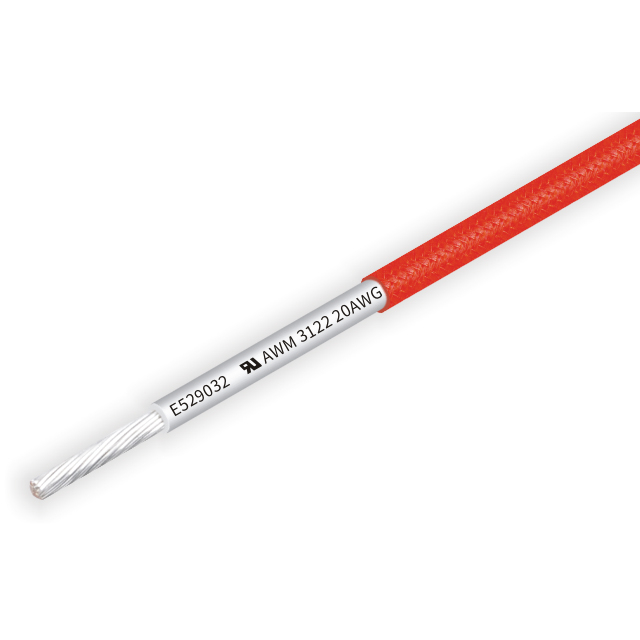

UL 3122
UL 3122

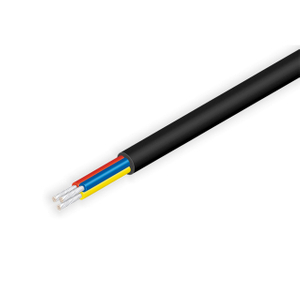

Silicone rubber sheathed wire
Silicone rubber sheathed wire

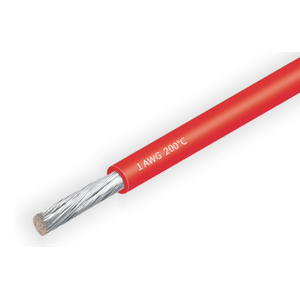

Silicone rubber multi strand soft wire
Silicone rubber multi strand soft wire

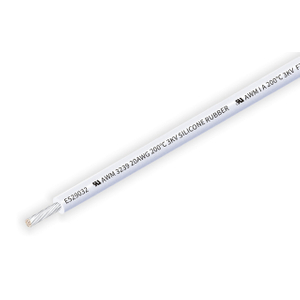

UL 3239
UL 3239
UL 3251
UL 3251

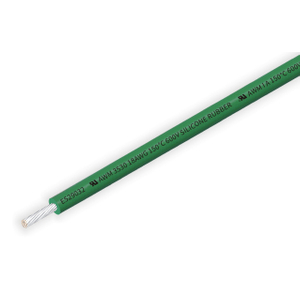

UL 3530
UL 3530
UL 3512
UL 3512

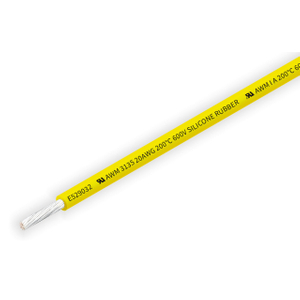

UL 3135
